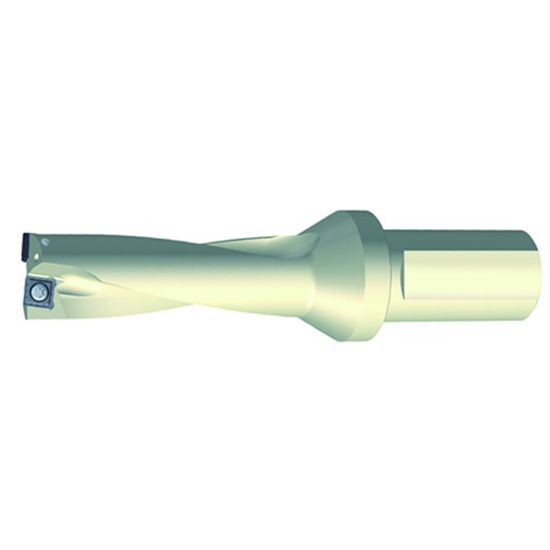

ZCC ZTD03-1.969"-XP1.50"-SP14-02 1.969" DIA Square Insert Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ZCC
SKU: ZCC4340000530
Delivery date: 3-5 days
$616.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 3 Drill
Material # Material#4, Material#16, Material#15, Material#8
Additional Key Information 1 Indexable Drill
Application Drilling, Multi Insert Drilling
Additional Key Information 2 Multi Insert
Sold by Pieces 1
Shipping State Michigain
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Cutter Dia 1.9688 50.01MM - 1-31/32
Tool Material High Speed Steel
Flutes/Inserts 2
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flute Length 6.1000 154.94MM
Cut Dia Min 1.9688 50.01MM - 1-31/32
Machine Side CYLINDRICAL1.5000
Overall Len 10.4300 264.92MM
Dia Deep 3.0XD
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.5000 38.10MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSS
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Agricultural YES
Medical Yes
Energy Yes
