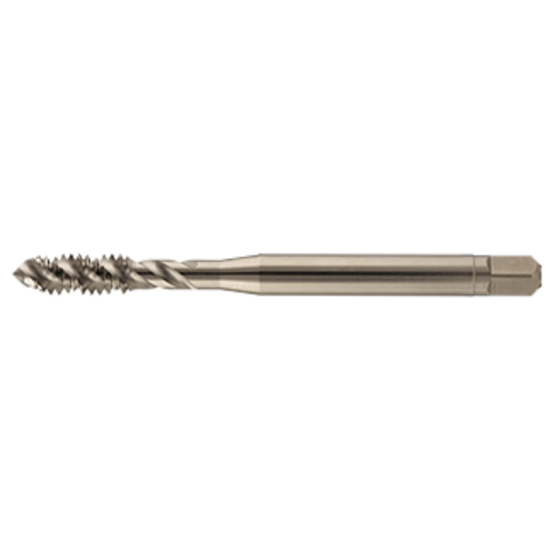

YMW SSUNCM3NEX No.12-24.00TPI Cut Spiral Flute Mod Bottom 2.5P HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMWSSUNCM3NEX
Delivery date: 3-5 days
$16.56
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State California
Material # Material#15, Material#8, Material#18, Material#2
Package Size 1
Sold by Pieces 1
Application Mod Bottom Tapping, Cut Tapping, Tapping
Additional Key Information 1 Tapping
Coating Steam Oxide
Performance Rating High Performance
Uncategorized
Made In USA No
Dimensional Specifications
Thread Size No.12
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Dimension Standard DINSI
Overall Len 3.1490 79.98MM
Length Type Standard
Machine Side TAP0.193x0.236
Tool Material Steel
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.2360 5.99MM
Drill Range 0.1724 4.38MM - 0.1835 4.66MM
Tap Style Cut Spiral Flute
Machine Side Connection Type Tap Collet
Tap Square 0.1930
Tap Type Mod Bottom
Tap Chamfer 2.5P
Thread Pitch 24.00TPI
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
