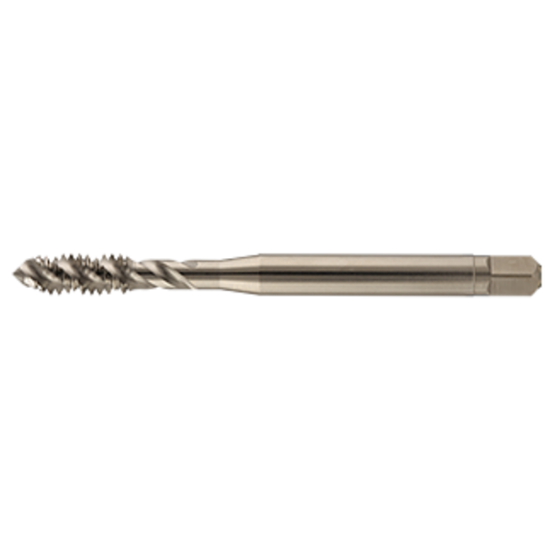

YMW SSUN6J1NEB-TIN No.6-32.00TPI Cut Spiral Flute Mod Bottom 2.5P HSSE-V TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMWSSUN6J1NEB-TIN
Delivery date: 3-5 days
$13.96
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#18, Material#8, Material#15, Material#2
Package Size 1
Shipping State California
Sold by Pieces 1
Application Mod Bottom Tapping, Cut Tapping, Tapping
Additional Key Information 1 Tapping
Performance Rating High Performance
Coating TiN
Uncategorized
Made In USA No
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side TAP0.110x0.141
Tap Style Cut Spiral Flute
Flute Direction R - Right
Length Type Standard
Shank/Pilot Dia 0.1410 3.58MM
Overall Len 2.2050 56.01MM
Thread Type NC/UNC
Dimension Standard DINSI
Tap Square 0.1080
Thread Size No.6
Tool Material Steel
Drill Range 0.1051 2.67MM - 0.1134 2.88MM
Thread Pitch 32.00TPI
Flutes/Inserts 3
Thread Limit H1/GH1
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tap Chamfer 2.5P
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
