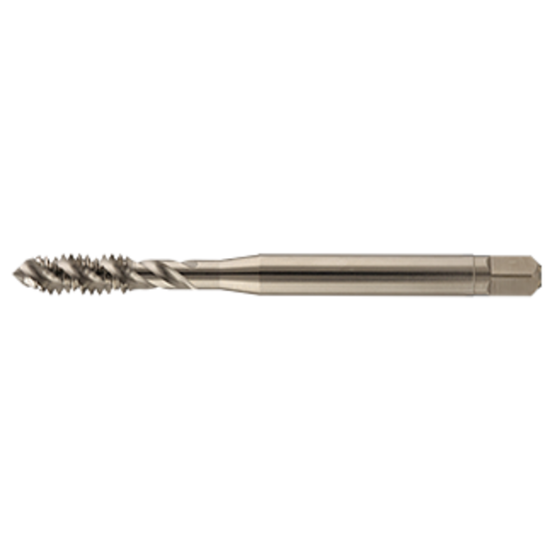

YMW SSUN6H2NEB-TIN No.6-40.00TPI Cut Spiral Flute Mod Bottom 2.5P HSSE-V TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMWSSUN6H2NEB-TIN
Delivery date: 3-5 days
$13.96
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#18, Material#2, Material#8, Material#15
Coating TiN
Sold by Pieces 1
Application Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State California
Performance Rating High Performance
Additional Key Information 1 Tapping
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side TAP0.110x0.141
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Pitch 40.00TPI
Overall Len 2.2050 56.01MM
Flute Direction R - Right
Length Type Standard
Shank/Pilot Dia 0.1410 3.58MM
Tap Chamfer 2.5P
Thread Type NF/UNF/UNEF
Thread Limit H2/GH2
Tool Material Steel
Thread Size No.6
Flutes/Inserts 3
Dimension Standard DINSI
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Drill Range 0.1118 2.84MM - 0.1181 3.00MM
Tap Square 0.1080
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
