  • YMW SSUN5H2NEB No.5-40.00TPI Cut Spiral Flute Mod Bottom 2.5P HSSE-V Uncoated

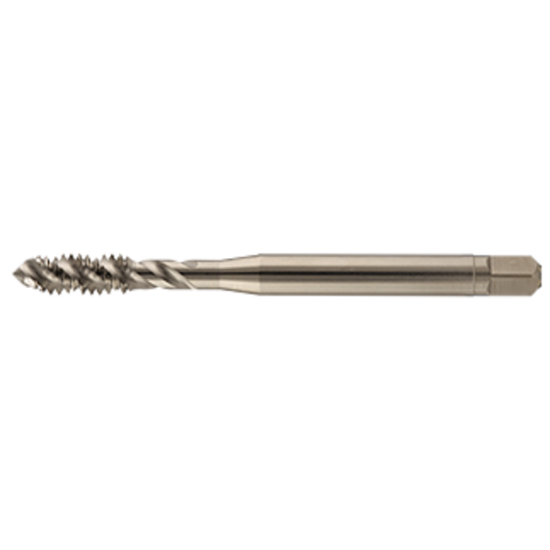

Picture of YMW SSUN5H2NEB No.5-40.00TPI Cut Spiral Flute Mod Bottom 2.5P HSSE-V Uncoated

YMW SSUN5H2NEB No.5-40.00TPI Cut Spiral Flute Mod Bottom 2.5P HSSE-V Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMWSSUN5H2NEB
Delivery date: 3-5 days
$13.96
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 1 Tapping
Application Cut Tapping, Mod Bottom Tapping, Tapping
Sold by Pieces 1
Shipping State California
Material # Material#15, Material#18, Material#2, Material#8
Performance Rating High Performance
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Thread Pitch 40.00TPI
Overall Len 2.2050 56.01MM
Flute Direction R - Right
Length Type Standard
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1410 3.58MM
Tap Chamfer 2.5P
Thread Size No.5
Thread Type NC/UNC
Dimension Standard DINSI
Flutes/Inserts 2
Tap Square 0.1080
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side TAP0.110x0.141
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Limit H2/GH2
Tool Material Steel
Drill Range 0.0988 2.51MM - 0.1047 2.66MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
