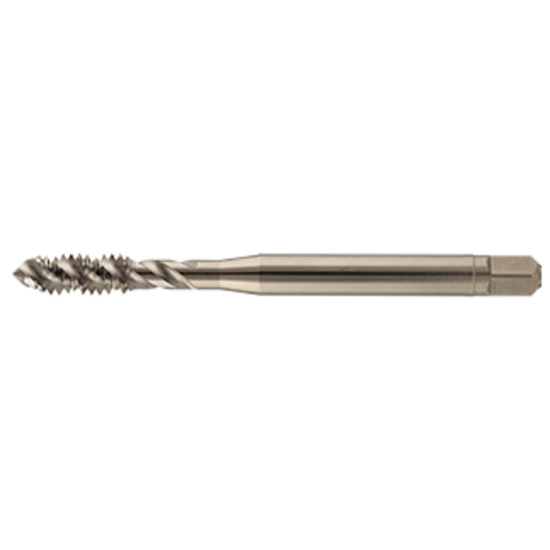

YMW SSUN4F1NEB-TIN No.4-48.00TPI Cut Spiral Flute Mod Bottom 2.5P HSSE-V TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMWSSUN4F1NEB-TIN
Delivery date: 3-5 days
$14.98
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State California
Material # Material#15, Material#18, Material#2, Material#8
Sold by Pieces 1
Application Mod Bottom Tapping, Cut Tapping, Tapping
Additional Key Information 1 Tapping
Performance Rating High Performance
Coating TiN
Uncategorized
Made In USA No
Dimensional Specifications
Dimension Standard DINSI
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 2
Drill Range 0.0902 2.29MM - 0.0957 2.43MM
Tool Material Steel
Thread Size No.4
Thread Limit H1/GH1
Machine Side TAP0.110x0.140
Shank/Pilot Dia 0.1410 3.58MM
Tap Chamfer 2.5P
Flute Direction R - Right
Tap Square 0.1100
Length Type Standard
Overall Len 2.2050 56.01MM
Thread Type NF/UNF/UNEF
Thread Pitch 48.00TPI
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V
Industry-Specific Applications
Job Shop Yes
