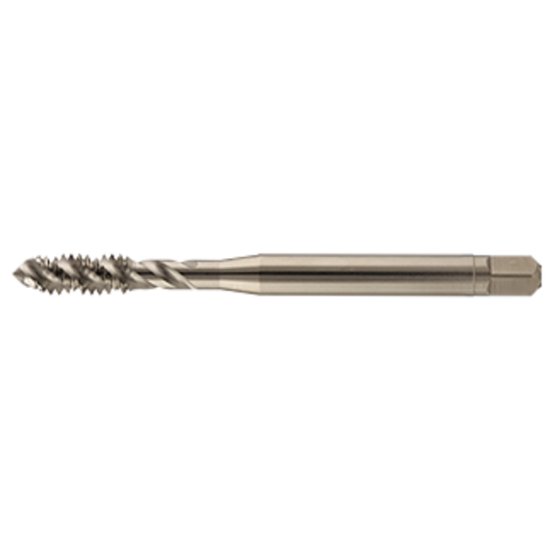

Picture of YMW SSUN3E1NEB-TIn No.3-56.00TPI Cut Spiral Flute Mod Bottom 2.5P HSSE-V TiN

YMW SSUN3E1NEB-TIn No.3-56.00TPI Cut Spiral Flute Mod Bottom 2.5P HSSE-V TiN

Part Number: YMWSSUN3E1NEB-TIN
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1174058

Description

YMW No.3x56.00TPI Cut Spiral Flute Mod Bottom 2.5P HSSE-V TiN H1/GH1 NF/UNF/UNEF Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.5P
Dimensions & Sizing
Overall Length 1.9700 50.04MM
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Thread Pitch 56.00TPI
Thread Size No.3
Tap Drill Range 0.0803 2.04MM - 0.0850 2.16MM
Tap Square 0.1100
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H1/GH1
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V
Coating TIN
Standards & Identification
Dimension Standard DINSI
