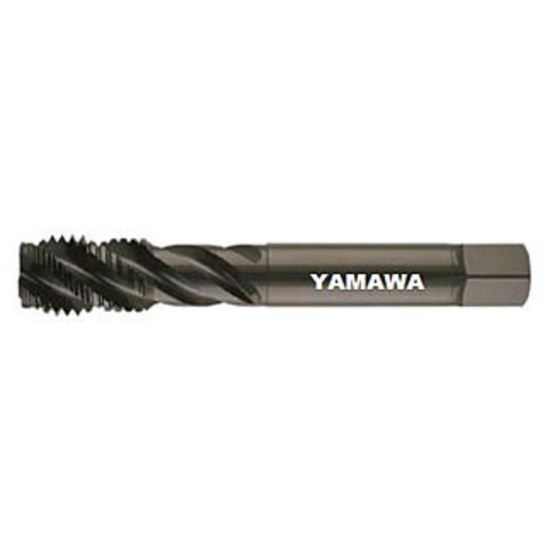

Picture of YMW SSU24XYEEXJ 1-1/2-8.00TPI Cut Spiral Flute Mod Bottom 2.5P HSS Steam Oxide

YMW SSU24XYEEXJ 1-1/2-8.00TPI Cut Spiral Flute Mod Bottom 2.5P HSS Steam Oxide

Part Number: YMWSSU24XYEEXJ

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: 1173930
Vendor: Sussex Tool and Supply
$521.63
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 1.3484 34.25MM - 1.4024 35.62MM
Dimension Standard ANSI/ANSI
Shank Or Pilot Diameter 1.2330 31.32MM
Thread Limit H5/GH5
Cutter Type Taping
Tap Square 0.9220
Length Type STANDARD
Performance Rating High Performance
Tap Style Cut Spiral Flute
Overall Length 6.3750 161.93MM
Machine Side (Toolpost) TAP0.925x1.233
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 4
Shipping State CALIFORNIA
Cutting Edge Material HSS
Tool Material Steel
Coating Steam Oxide
Coolant Thru Non Coolant
Tap Type Mod Bottom
Flute Direction Right
Thread Type NC/UNC
Made In USA No
Thread Size 1-1/2"
Thread Pitch 8.00TPI
Tap Chamfer 2.5P
