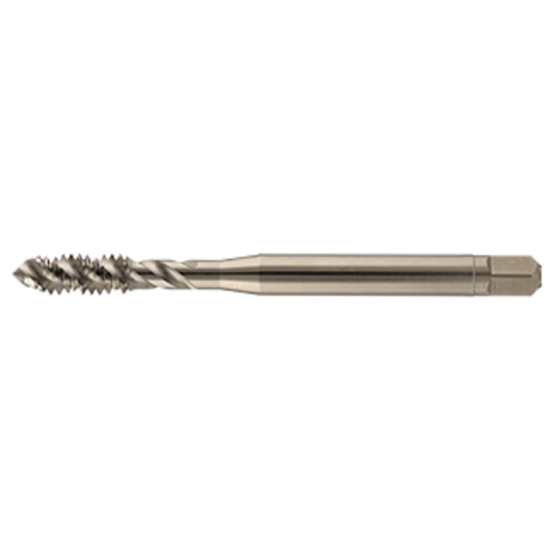

YMW SSU18S4NEX 1-1/8-12.00TPI Cut Spiral Point Plug 2.5P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMWSSU18S4NEX
Delivery date: 3-5 days
$282.33
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State California
Sold by Pieces 1
Material # Material#4, Material#8
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Package Size 1
Additional Key Information 1 Tapping
Coating Steam Oxide
Performance Rating High Performance
Uncategorized
Made In USA No
Dimensional Specifications
Cut Rating <48HRC Steel, Stainless Steel
Tap Square 0.6690
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Machine Side TAP0.672x0.896
Tap Type Plug
Tool Material Steel
Shank/Pilot Dia 0.8960 22.76MM
Thread Limit H4/GH4
Drill Range 0.9764 24.80MM - 1.0134 25.74MM
Tap Chamfer 2.5P
Thread Size 1-1/8"
Thread Pitch 12.00TPI
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Overall Len 5.7500 146.05MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
