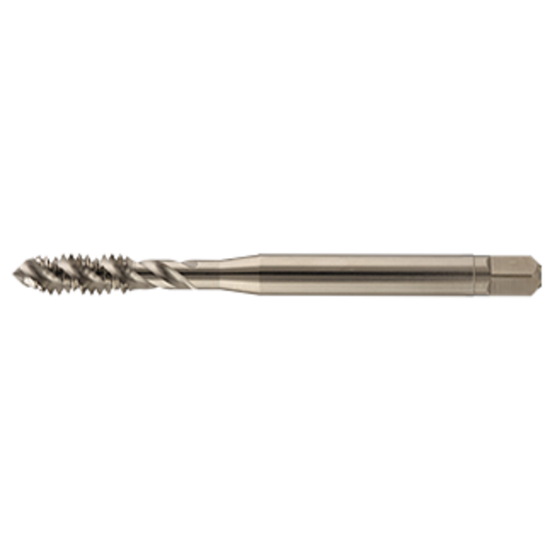

YMW SSU16S5NEB 1-12.00TPI Cut Spiral Point Plug 2.5P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMWSSU16S5NEBTiN
Delivery date: 3-5 days
$190.05
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Material # Material#4, Material#8
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Shipping State California
Sold by Pieces 1
Additional Key Information 1 Tapping
Performance Rating High Performance
Coating TiN
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side TAP0.571x0.800
Tool Material Steel
Tap Chamfer 2.5P
Tap Style Cut Spiral Point
Thread Size 1"
Flute Direction R - Right
Overall Len 5.1250 130.18MM
Flutes/Inserts 4
Length Type Standard
Cut Rating <48HRC Steel, Stainless Steel
Thread Limit H5/GH5
Shank/Pilot Dia 0.8000 20.32MM
Tap Type Plug
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Thread Pitch 12.00TPI
Machine Side Connection Type Tap Collet
Drill Range 0.9134 23.20MM - 0.9350 23.75MM
Tap Square 0.5710
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Agricultural YES
Job Shop Yes
Energy Yes
