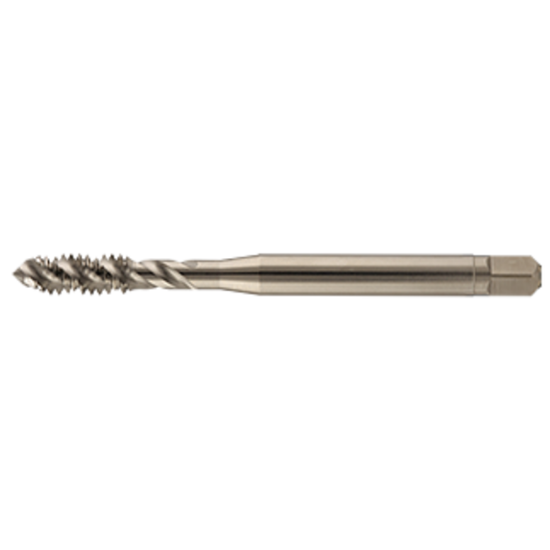

YMW SSU04N3NEX 1/4-20.00TPI Cut Spiral Flute Mod Bottom 2.5P HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMWSSU04N3NEX
Delivery date: 3-5 days
$16.56
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#15, Material#18, Material#8, Material#2
Additional Key Information 1 Tapping
Application Cut Tapping, Tapping, Mod Bottom Tapping
Coating Steam Oxide
Performance Rating General Performance
Sold by Pieces 1
Package Size 1
Shipping State California
Uncategorized
Made In USA No
Dimensional Specifications
Tool Material Steel
Thread Pitch 20.00TPI
Thread Type NC/UNC
Thread Limit H3/GH3
Dimension Standard DINSI
Overall Len 3.1490 79.98MM
Machine Side TAP0.191x0.255
Flutes/Inserts 3
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Thread Size 1/4"
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tap Square 0.1910
Tap Style Cut Spiral Flute
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Tap Type Mod Bottom
Tap Chamfer 2.5P
Flute Direction R - Right
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Multi Spindle Yes
Agricultural YES
Medical Yes
Energy Yes
Automotive Yes
