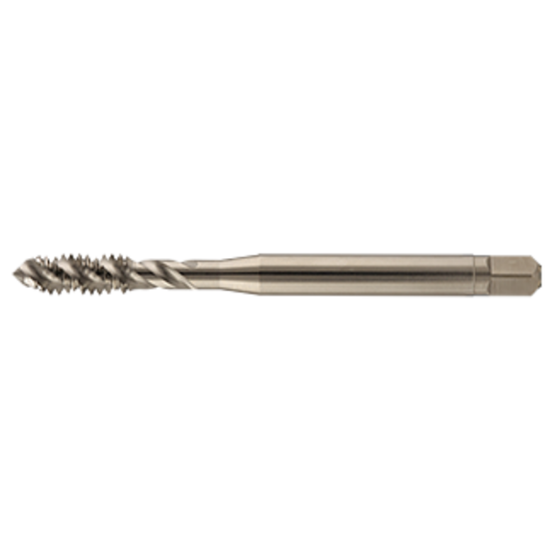

YMW SSU04K3NEX 1/4-28.00TPI Cut Spiral Flute Mod Bottom 2.5P HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMWSSU04K3NEX
Delivery date: 3-5 days
$16.56
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 1 Tapping
Coating Steam Oxide
Shipping State California
Material # Material#15, Material#18, Material#2, Material#8
Sold by Pieces 1
Application Mod Bottom Tapping, Cut Tapping, Tapping
Package Size 1
Performance Rating General Performance
Uncategorized
Made In USA No
Dimensional Specifications
Thread Pitch 28.00TPI
Machine Side TAP0.191x0.255
Flutes/Inserts 3
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Thread Size 1/4"
Tool Material Steel
Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Dimension Standard DINSI
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 3.1490 79.98MM
Shank/Pilot Dia 0.2550 6.48MM
Tap Chamfer 2.5P
Machine Side Connection Type Tap Collet
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Type NF/UNF/UNEF
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Multi Spindle Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
