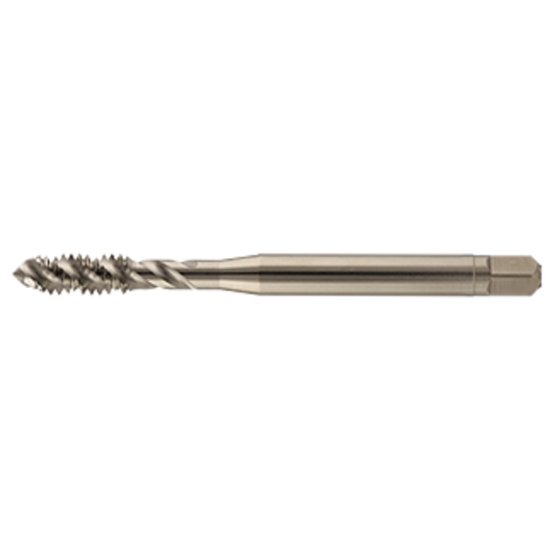

Picture of YMW SSU04K2NEB-TIn 1/4-28.00TPI Cut Spiral Flute Mod Bottom 2.5P HSSE-V TiN

YMW SSU04K2NEB-TIn 1/4-28.00TPI Cut Spiral Flute Mod Bottom 2.5P HSSE-V TiN

Part Number: YMWSSU04K2NEB-TIN
Looking for alternatives…
Find a drill for this tap 1/4" × 28.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1174158
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

YMW 1/4"x28.00TPI Cut Spiral Flute Mod Bottom 2.5P HSSE-V TiN H2/GH2 NF/UNF/UNEF Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.5P
Multi Spindle Yes
Dimensions & Sizing
Overall Length 3.1490 79.98MM
Shank/Pilot Dia 0.2550 6.48MM
Flutes/Inserts 3
Thread Pitch 28.00TPI
Thread Size 1/4"
Tap Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Tap Square 0.1910
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H2/GH2
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V
Coating TIN
Standards & Identification
Dimension Standard DINSI
