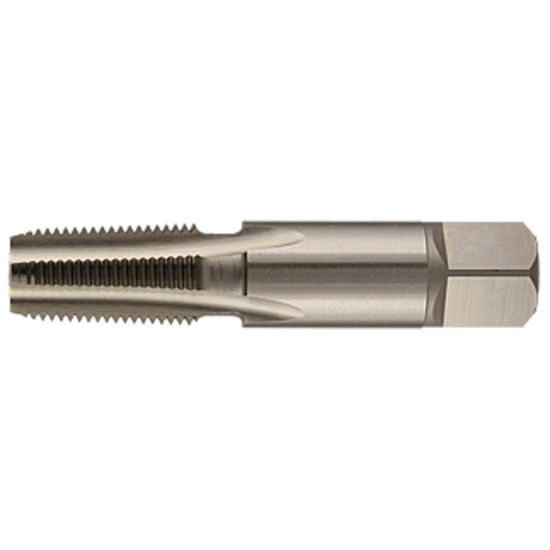

YMW 389645TICN 1/2-14.00TPI Pipe Spiral Flute Pipe Cobalt M42 TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW389645TICN
Delivery date: 3-5 days
$150.79
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

M42® is a premium cobalt high-speed steel with high hardness and superior hot hardness. The combination of composition and properties allows for machining high-strength and pre-hardened steels, high-hardness alloys, and the difficult-to-machine, nonferrous superalloys.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#15, Material#16, Material#4, Material#20
Coating TiCN
Package Size 1
Sold by Pieces 1
Application Spiral Flute Pipe, Pipe Tapping, Tapping
Shipping State California
Additional Key Information 1 Tapping
Performance Rating High Performance
Uncategorized
Made In USA No
Dimensional Specifications
Thread Size 1/2"
Overall Len 3.1260 79.40MM
Machine Side Connection Type Tap Collet
Drill Range 17.8500 453.39MM
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Thread Limit PIPE
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Tap Style Pipe Spiral Flute
Thread Pitch 14.00TPI
Tap Type Pipe
Flute Direction R - Right
Flutes/Inserts 4
Tap Square 0.5150
Length Type Standard
Dimension Standard ANSI/ANSI
Machine Side TAP0.515x0.687
Shank/Pilot Dia 0.6870 17.45MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt M42
Coolant Thru No
Industry-Specific Applications
Mold Yes
Automotive Yes
Job Shop Yes
Agricultural YES
