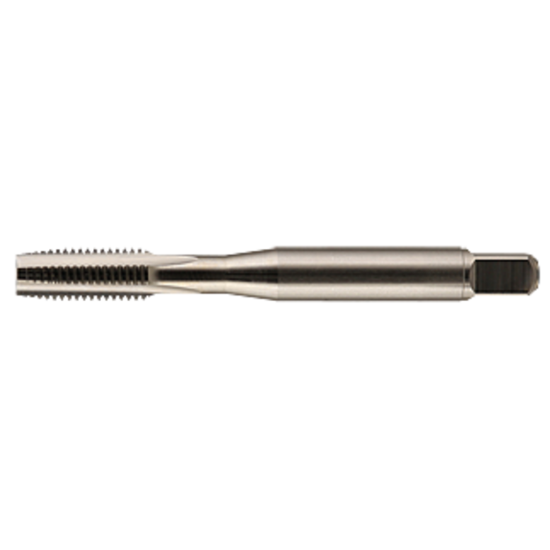

YMW 389628TICN 3/4-16.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW389628TICN
Delivery date: 3-5 days
$122.96
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

M42® is a premium cobalt high-speed steel with high hardness and superior hot hardness. The combination of composition and properties allows for machining high-strength and pre-hardened steels, high-hardness alloys, and the difficult-to-machine, nonferrous superalloys.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Package Size 1
Material # Material#20, Material#16, Material#4, Material#15
Sold by Pieces 1
Application Through Hole Tapping, Plug Tapping, Cut Tapping, Tapping
Shipping State California
Additional Key Information 1 Tapping
Performance Rating High Performance
Uncategorized
Made In USA No
Dimensional Specifications
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Overall Len 4.2520 108.00MM
Tap Type Plug
Tool Material Steel
Thread Pitch 16.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Drill Range 0.6850 17.40MM - 0.7012 17.81MM
Thread Limit H3/GH3
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Thread Size 3/4"
Shank/Pilot Dia 0.5900 14.99MM
Tap Chamfer 4.0P-6.0P
Machine Side TAP0.442x0.590
Machine Side Connection Type Tap Collet
Tap Square 0.4420
Tap Style Cut Spiral Point
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt M42
Industry-Specific Applications
Agricultural YES
Automotive Yes
Job Shop Yes
Mold Yes
