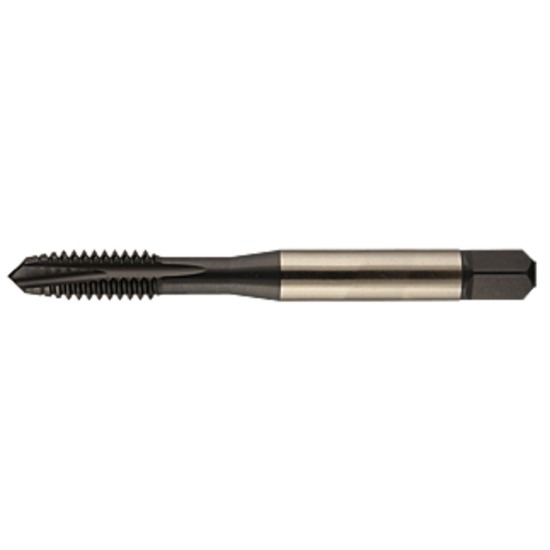

YMW 387264NX 7/16-14.00TPI STI Plug 3.0P-5.0P HSSE-P Nitride + Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW387264NX
Delivery date: 3-5 days
$99.50
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Material # Material#10I, Material#4, Material#10
Application STI Thread Insert Tapping, Through Hole Tapping, Plug Tapping, Tapping
Sold by Pieces 1
Coating Nitride + Steam Oxide
Shipping State California
Additional Key Information 1 Tapping
Performance Rating High Performance
Uncategorized
Made In USA No
Dimensional Specifications
Overall Len 3.1600 80.26MM
Thread Size 7/16"
Cut Rating <48HRC Steel, High Temp, Inconel
Machine Side TAP0.242x0.323
Tool Material Steel
Drill Range 0.3630 9.22MM - 0.3815 9.69MM
Tap Style STI
Thread Pitch 14.00TPI
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Flutes/Inserts 3
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Dimension Standard ANSI/ANSI
Tap Square 0.2420
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-P
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
