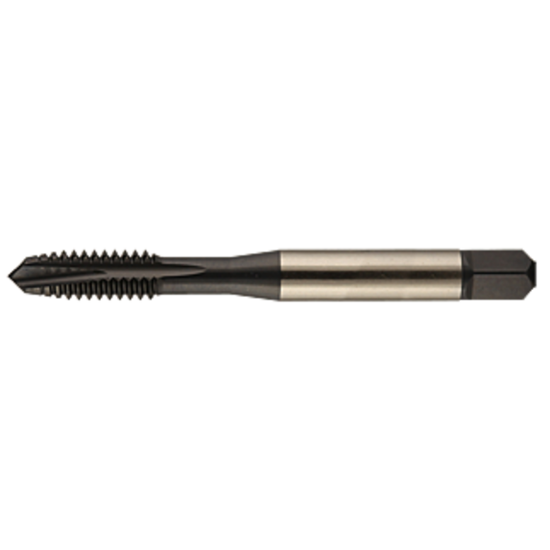

YMW 387067NX 1/2-20.00TPI STI Bottoming 1.0P-2.0P HSSE-P Nitride + Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW387067NX
Delivery date: 3-5 days
$124.56
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Sold by Pieces 1
Material # Material#10I, Material#4, Material#10
Application STI Thread Insert Tapping, Blind Hole Tapping, Bottom Tapping, Tapping
Coating Nitride + Steam Oxide
Additional Key Information 1 Tapping
Performance Rating High Performance
Shipping State California
Uncategorized
Made In USA No
Dimensional Specifications
Tap Chamfer 1.0P-2.0P
Thread Size 1/2"
Cut Rating <48HRC Steel, High Temp, Inconel
Tool Material Steel
Tap Style STI
Machine Side Connection Type Tap Collet
Drill Range 0.4476 11.37MM - 0.4606 11.70MM
Tap Square 0.2750
Machine Side TAP0.276x0.367
Shank/Pilot Dia 0.3670 9.32MM
Overall Len 3.3740 85.70MM
Flutes/Inserts 3
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Thread Pitch 20.00TPI
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-P
Industry-Specific Applications
Energy Yes
Aerospace Yes
Job Shop Yes
Medical Yes
