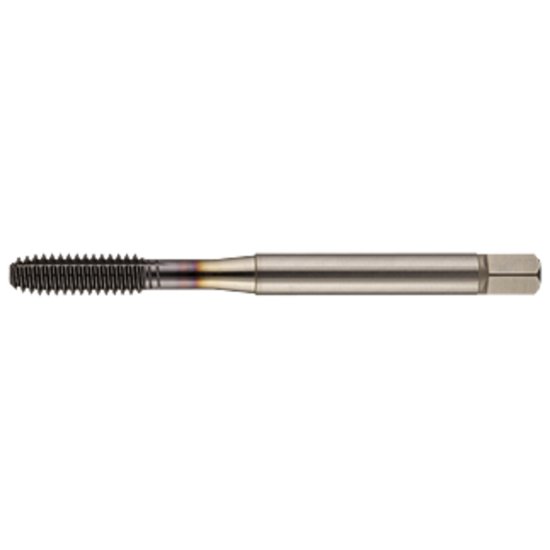

Picture of YMW 386880 M12-1.25mm Roll Form Plug 3.0P-5.0P HSSE-P TiCN

YMW 386880 M12-1.25mm Roll Form Plug 3.0P-5.0P HSSE-P TiCN

Part Number: YMW386880
Looking for alternatives…
Find a drill for this tap M12 × 1.25MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1174034
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

YMW M12x1.25MM Roll Form Plug 3.0P-5.0P HSSE-P TiCN D9 Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Tap Style Roll Form
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Dimensions & Sizing
Overall Length 4.3307 110.00MM
Shank/Pilot Dia 0.3670 9.32MM
Thread Pitch 1.25MM
Thread Size M12
Tap Drill Range 0.4472 11.36MM - 0.4539 11.53MM
Tap Square 0.2730
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, High Temp, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit D9
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-P
Coating TICN
Standards & Identification
Dimension Standard DINSI
