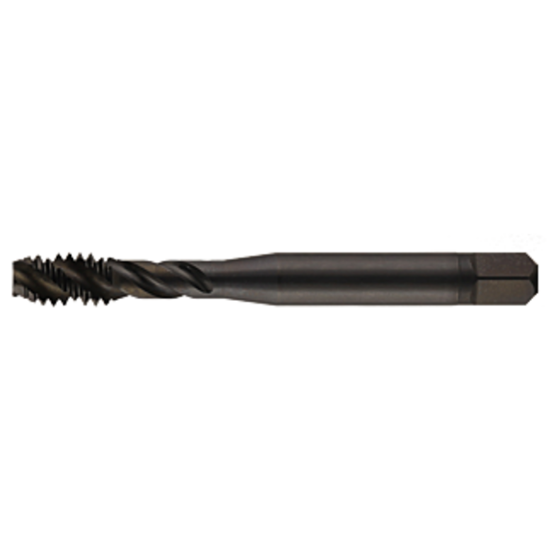

YMW 384907B No.8-32.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW384907B
Delivery date: 3-5 days
$16.33
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#8, Material#3
Additional Key Information 1 Tapping
Application Cut Tapping, Tapping, Mod Bottom Tapping
Coating Steam Oxide
Performance Rating High Performance
Package Size 1
Shipping State California
Sold by Pieces 1
Uncategorized
Made In USA No
Dimensional Specifications
Thread Pitch 32.00TPI
Overall Len 2.1250 53.98MM
Flutes/Inserts 3
Tap Chamfer 2.5P-3.5P
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Machine Side TAP0.131x0.168
Tool Material Steel
Tap Style Cut Spiral Flute
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.1680 4.27MM
Drill Range 0.1480 3.76MM - 0.1520 3.86MM
Tap Square 0.1310
Length Type Standard
Thread Size No.8
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
