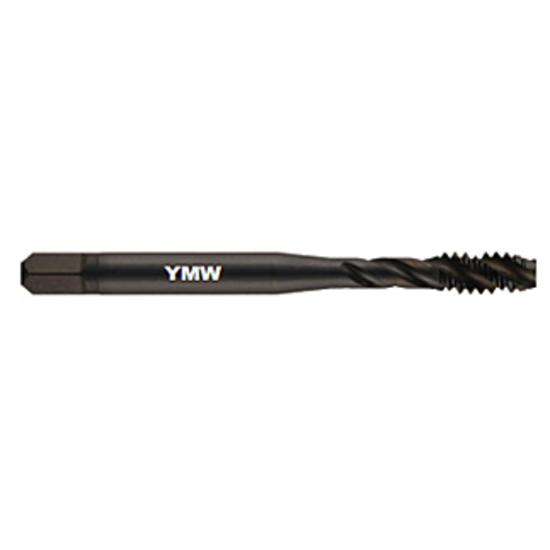

YMW 384013 1/4-20.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW384013
Delivery date: 3-5 days
$17.59
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#16, Material#23, Material#15, Material#21, Material#8, Material#20, Material#3
Package Size 1
Application Bottom Tapping, Tapping, Cut Tapping
Performance Rating High Performance
Shipping State California
Sold by Pieces 1
Additional Key Information 1 Tapping
Coating Steam Oxide
Uncategorized
Made In USA No
Dimensional Specifications
Tool Material Steel
Thread Pitch 20.00TPI
Thread Type NC/UNC
Thread Limit H3/GH3
Tap Chamfer 1.0P-2.0P
Dimension Standard ANSI/ANSI
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Tap Style Cut Spiral Flute
Thread Size 1/4"
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Machine Side TAP0.191x0.255
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
