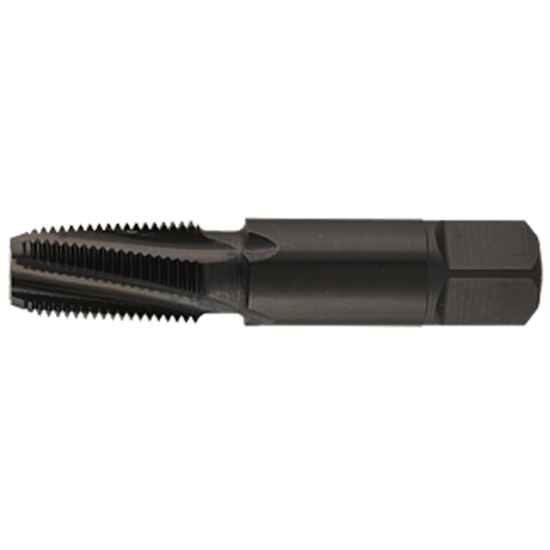

YMW 383647OX 1-11.50TPI Pipe Spiral Flute Pipe HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW383647OX
Delivery date: 3-5 days
$273.43
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#21, Material#3, Material#8, Material#16, Material#15, Material#20, Material#23
Shipping State California
Additional Key Information 1 Tapping
Coating Steam Oxide
Application Tapping, Spiral Flute Pipe, Pipe Tapping
Performance Rating High Performance
Sold by Pieces 1
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Thread Pitch 11.50TPI
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Length Type Standard
Thread Limit PIPE
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side TAP0.843x1.125
Shank/Pilot Dia 1.1250 28.58MM - 1-1/8
Overall Len 3.7520 95.30MM
Drill Range 1.1406 28.97MM
Tap Style Pipe Spiral Flute
Tool Material Steel
Dimension Standard ANSI/ANSI
Tap Square 0.8390
Machine Side Connection Type Tap Collet
Tap Type Pipe
Thread Size 1"
Flutes/Inserts 4
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
