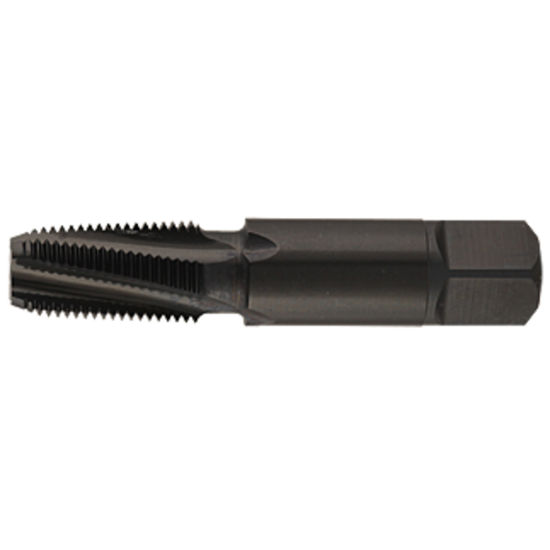

YMW 383644BR 3/8-18.00TPI Pipe Spiral Flute Pipe HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW383644BR
Delivery date: 3-5 days
$125.29
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#15, Material#20, Material#16, Material#8, Material#21, Material#23, Material#3
Application Tapping, Spiral Flute Pipe, Pipe Tapping
Performance Rating High Performance
Sold by Pieces 1
Shipping State California
Package Size 1
Additional Key Information 1 Tapping
Uncategorized
Made In USA No
Dimensional Specifications
Dimension Standard ANSI/ANSI
Machine Side TAP0.531x0.700
Shank/Pilot Dia 0.7000 17.78MM
Overall Len 2.5620 65.07MM
Tap Type Pipe
Tool Material Steel
Thread Pitch 18.00TPI
Thread Limit PIPE
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Drill Range 0.5622 14.28MM
Tap Square 0.5310
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Length Type Standard
Thread Size 3/8"
Flutes/Inserts 4
Tap Style Pipe Spiral Flute
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
