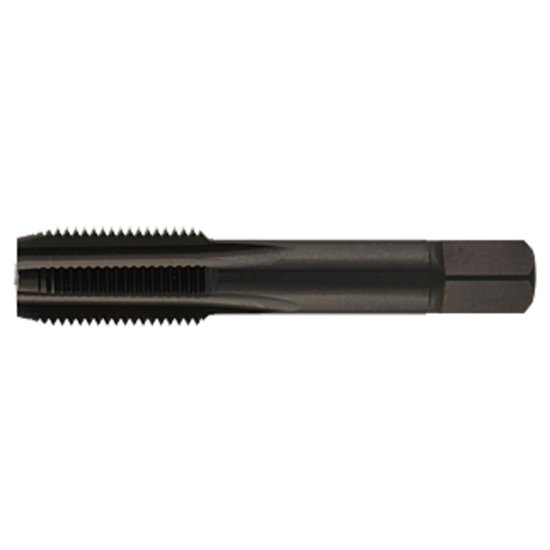

Picture of YMW 383330OX 1/2-14.00TPI Pipe Straight Flute Pipe HSS Steam Oxide

YMW 383330OX 1/2-14.00TPI Pipe Straight Flute Pipe HSS Steam Oxide

Part Number: YMW383330OX

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: 1173640
Vendor: Sussex Tool and Supply
$577.80
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 0.7480 19.00MM
Dimension Standard ANSI/ANSI
Shank Or Pilot Diameter 0.6870 17.45MM
Thread Limit PIPE
Cutter Type Taping
Tap Square 0.5150
Length Type STANDARD
Performance Rating High Performance
Tap Style Pipe Straight Flute
Overall Length 3.1260 79.40MM
Machine Side (Toolpost) TAP0.515x0.687
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 4
Shipping State CALIFORNIA
Cutting Edge Material HSS
Tool Material Steel
Coating Steam Oxide
Coolant Thru Non Coolant
Tap Type Pipe
Flute Direction Straight
Thread Type NPSM/NPSF
Made In USA No
Thread Size 1/2"
Thread Pitch 14.00TPI
