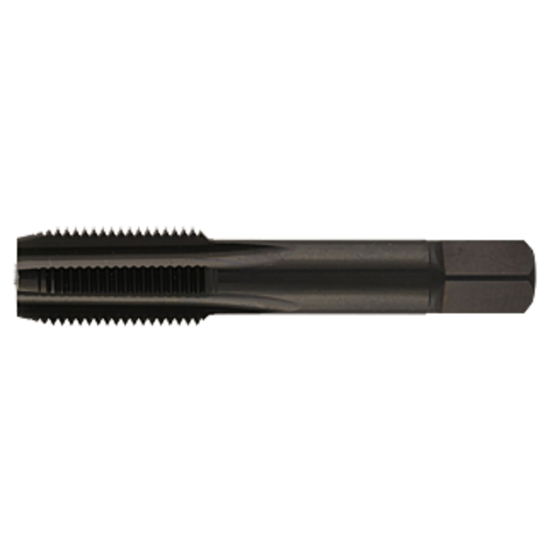

YMW 383305BR 1/2-14.00TPI Pipe Straight Flute Pipe HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW383305BR
Delivery date: 3-5 days
$129.72
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#21, Material#23, Material#15, Material#16, Material#8, Material#20, Material#3
Application Pipe Tapping, Straight Flute Pipe, Tapping
Shipping State California
Package Size 1
Sold by Pieces 1
Additional Key Information 1 Tapping
Performance Rating High Performance
Uncategorized
Made In USA No
Dimensional Specifications
Thread Size 1/2"
Thread Type NPSM/NPSF
Tool Material Steel
Overall Len 3.1260 79.40MM
Flutes/Inserts 4
Tap Square 0.5150
Dimension Standard ANSI/ANSI
Drill Range 0.7480 19.00MM
Length Type Standard
Thread Limit PIPE
Thread Pitch 14.00TPI
Flute Direction STRAIGHT
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Type Pipe
Machine Side TAP0.515x0.687
Shank/Pilot Dia 0.6870 17.45MM
Tap Style Pipe Straight Flute
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
