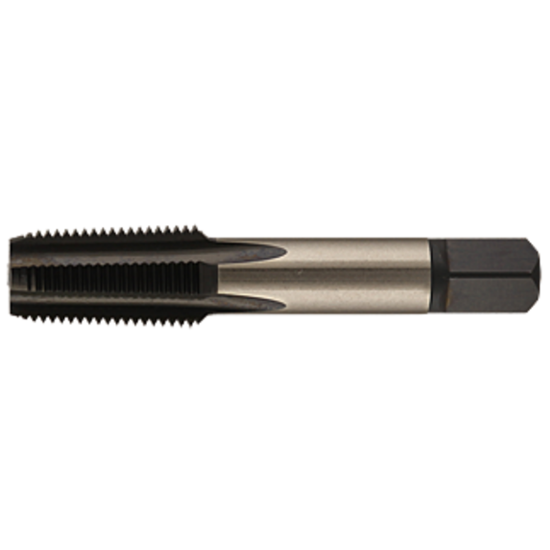

YMW 383110TIN 2-11.50TPI Pipe Straight Flute Pipe HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW383110TIN
Delivery date: 3-5 days
$580.09
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#21, Material#23, Material#15, Material#16, Material#8, Material#20, Material#3
Application Pipe Tapping, Tapping, Straight Flute Pipe
Shipping State California
Package Size 1
Sold by Pieces 1
Coating TiN
Additional Key Information 1 Tapping
Performance Rating High Performance
Uncategorized
Made In USA No
Dimensional Specifications
Tool Material Steel
Thread Pitch 11.50TPI
Thread Size 2"
Dimension Standard ANSI/ANSI
Machine Side TAP1.406x1.875
Thread Type NPT/NPTF/ANPT
Length Type Standard
Thread Limit PIPE
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 1.8750 47.63MM - 1-7/8
Flutes/Inserts 7
Drill Range 2.1874 55.56MM
Flute Direction STRAIGHT
Tap Square 1.4060
Machine Side Connection Type Tap Collet
Tap Type Pipe
Overall Len 4.5000 114.30MM
Tap Style Pipe Straight Flute
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
