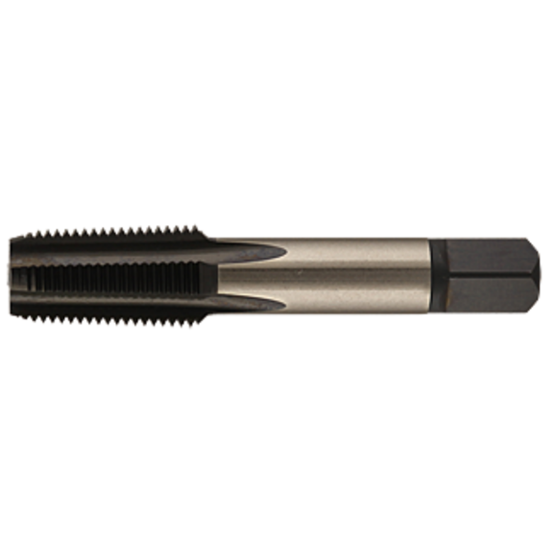

YMW 383106OX 3/4-14.00TPI Pipe Straight Flute Pipe HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW383106OX
Delivery date: 3-5 days
$147.08
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#21, Material#23, Material#8, Material#3, Material#20, Material#15, Material#16
Shipping State California
Additional Key Information 1 Tapping
Application Tapping, Pipe Tapping, Straight Flute Pipe
Coating Steam Oxide
Performance Rating High Performance
Sold by Pieces 1
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Length Type Standard
Flutes/Inserts 5
Tap Style Pipe Straight Flute
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Drill Range 0.9059 23.01MM
Tap Square 0.6790
Thread Size 3/4"
Dimension Standard ANSI/ANSI
Machine Side TAP0.678x0.906
Flute Direction STRAIGHT
Tap Type Pipe
Thread Limit PIPE
Thread Pitch 14.00TPI
Shank/Pilot Dia 0.9063 23.02MM - 29/32
Overall Len 3.2520 82.60MM
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
