  • YMW 382927B 3/4-10.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V Uncoated

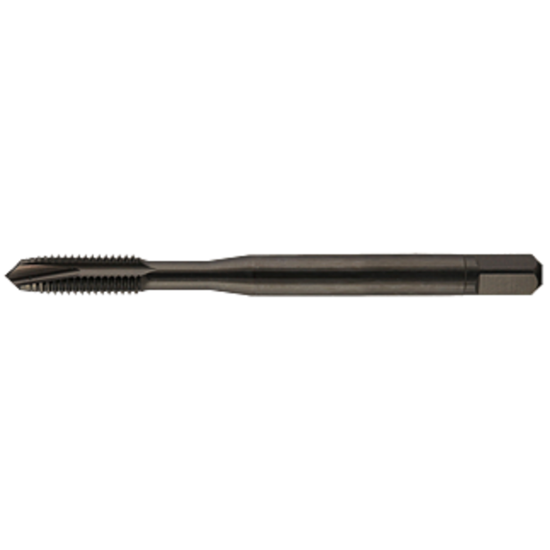

Picture of YMW 382927B 3/4-10.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V Uncoated

YMW 382927B 3/4-10.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW382927B
Delivery date: 3-5 days
$107.26
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#20, Material#3, Material#15, Material#21, Material#23, Material#16, Material#8
Additional Key Information 1 Tapping
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Package Size 1
Sold by Pieces 1
Shipping State California
Uncategorized
Made In USA No
Dimensional Specifications
Thread Size 3/4"
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.5900 14.99MM
Drill Range 0.6461 16.41MM - 0.6720 17.07MM
Thread Pitch 10.00TPI
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Flutes/Inserts 3
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Tool Material Steel
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side TAP0.442x0.590
Machine Side Connection Type Tap Collet
Overall Len 4.2520 108.00MM
Tap Square 0.4420
Tap Style Cut Spiral Point
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V
Industry-Specific Applications
Agricultural YES
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
