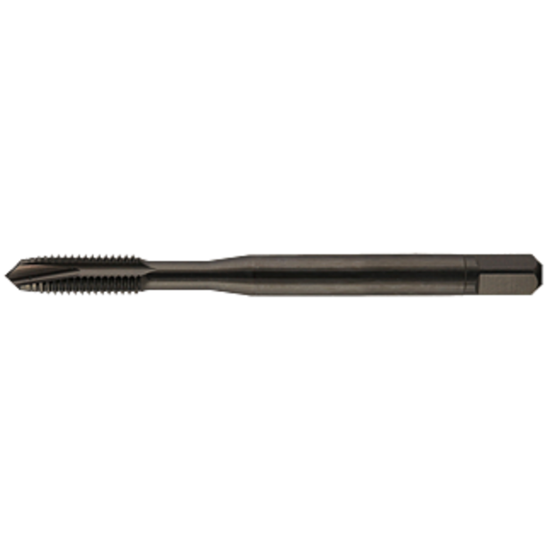

YMW 382927 3/4-10.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW382927
Delivery date: 3-5 days
$151.52
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#23, Material#16, Material#20, Material#21, Material#3, Material#15, Material#8
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Shipping State California
Additional Key Information 1 Tapping
Sold by Pieces 1
Performance Rating High Performance
Coating TiN
Uncategorized
Made In USA No
Dimensional Specifications
Thread Type NC/UNC
Thread Limit H3/GH3
Drill Range 0.6461 16.41MM - 0.6720 17.07MM
Tool Material Steel
Machine Side TAP0.442x0.590
Tap Square 0.4420
Tap Style Cut Spiral Point
Flute Direction R - Right
Length Type Standard
Thread Size 3/4"
Flutes/Inserts 3
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Thread Pitch 10.00TPI
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.5900 14.99MM
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Overall Len 4.2520 108.00MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
