  • YMW 382901B No.4-40.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V Uncoated

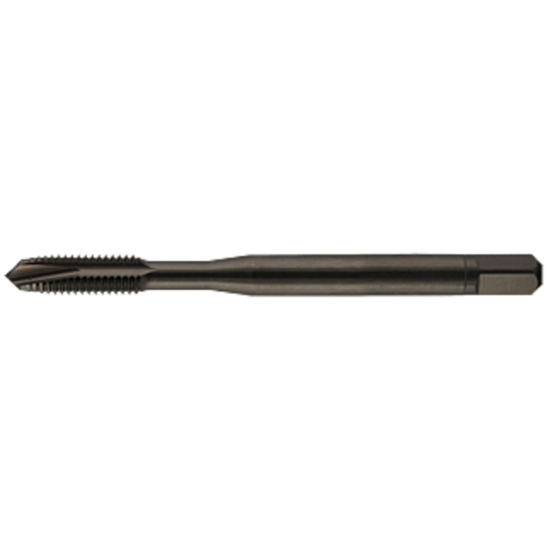

Picture of YMW 382901B No.4-40.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V Uncoated

YMW 382901B No.4-40.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW382901B
Delivery date: 3-5 days
$17.34
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Material # Material#16, Material#20, Material#15, Material#8, Material#3, Material#21, Material#23
Application Through Hole Tapping, Plug Tapping, Cut Tapping, Tapping
Sold by Pieces 1
Additional Key Information 1 Tapping
Performance Rating High Performance
Shipping State California
Uncategorized
Made In USA No
Dimensional Specifications
Tool Material Steel
Tap Square 0.1100
Thread Size No.4
Shank/Pilot Dia 0.1410 3.58MM
Tap Chamfer 3.0P-5.0P
Thread Pitch 40.00TPI
Tap Type Plug
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side TAP0.110x0.140
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Dimension Standard ANSI/ANSI
Overall Len 1.8750 47.63MM
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Flutes/Inserts 2
Drill Range 0.0992 2.52MM - 0.1024 2.60MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V
Industry-Specific Applications
Agricultural YES
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
