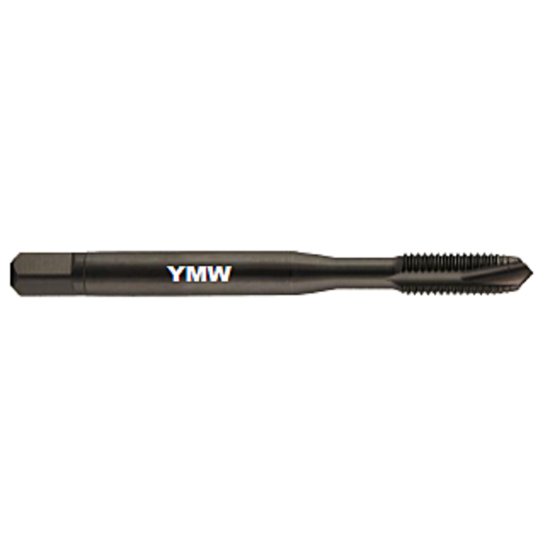

Picture of YMW 382710 2-4.50TPI Over Sized Plug Plug 3.0P-5.0P HSSE-V Steam Oxide

YMW 382710 2-4.50TPI Over Sized Plug Plug 3.0P-5.0P HSSE-V Steam Oxide

Part Number: YMW382710
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
2" × 4.50TPI Cut
% of thread 75%
Target drill —
Drill products available across the % thread range
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1173413
Vendor: Sussex Tool and Supply
$1,362.79

Description

YMW 2"x4.50TPI Over Sized Plug Plug 3.0P-5.0P HSSE-V Steam Oxide GH7 +0.0035 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Over Sized Plug
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Dimensions & Sizing
Overall Length 7.6250 193.68MM
Shank/Pilot Dia 1.5748 40.00MM
Flutes/Inserts 4
Thread Pitch 4.50TPI
Thread Size 2"
Tap Drill Range 1.7587 44.67MM - 1.8268 46.40MM
Tap Square 1.2330
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper, Ductile Iron, Gray Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit GH7 +0.0035
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V
Coating Steam Oxide
Standards & Identification
Dimension Standard ANSI/ANSI
