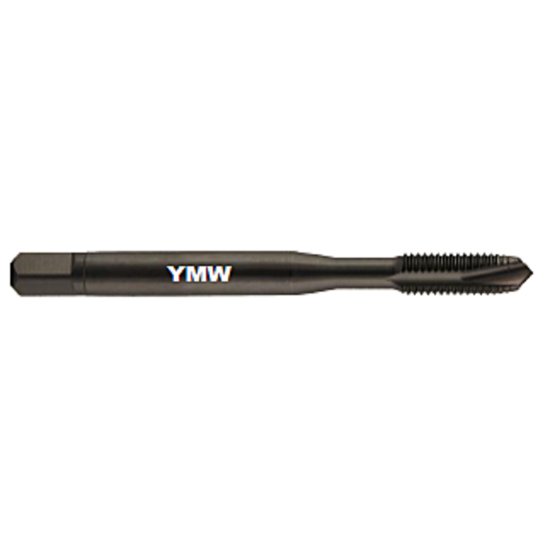

Picture of YMW 382709 1-3/4-5.00TPI Over Sized Plug Plug 3.0P-5.0P HSSE-V Steam Oxide

YMW 382709 1-3/4-5.00TPI Over Sized Plug Plug 3.0P-5.0P HSSE-V Steam Oxide

Part Number: YMW382709

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: 1173412
Vendor: Sussex Tool and Supply
$812.28
Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.
Products specifications
Attribute name Attribute value
Tap Drill Range 1.5339 38.96MM - 1.5941 40.49MM
Dimension Standard ANSI/ANSI
Shank Or Pilot Diameter 1.4173 36.00MM
Thread Limit GH7 +0.0035
Cutter Type Taping
Tap Square 0.3190
Length Type STANDARD
Performance Rating High Performance
Tap Style Over Sized Plug
Overall Length 7.0000 177.80MM
Machine Side (Toolpost) TAP1.072x1.430
Cutting Edge Definition which increase wear resistance and hot hardness., Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 4
Shipping State CALIFORNIA
Cutting Edge Material HSSE-V
Tool Material Steel
Coating Steam Oxide
Coolant Thru Non Coolant
Tap Type Plug
Flute Direction Right
Thread Type NC/UNC
Made In USA No
Thread Size 1-3/4"
Thread Pitch 5.00TPI
Tap Chamfer 3.0P-5.0P
