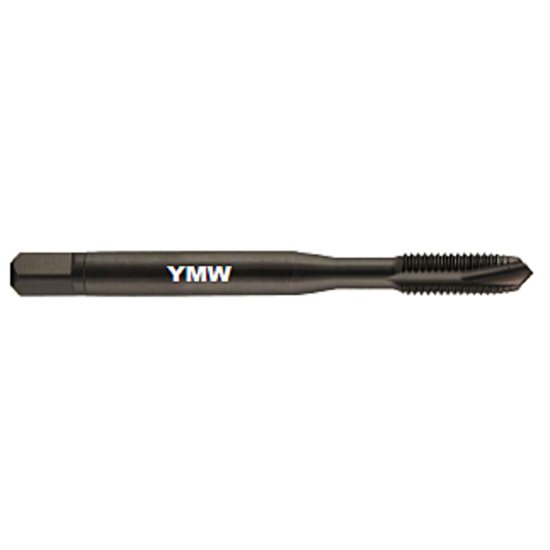

Picture of YMW 382708 1-1/2-12.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V Steam Oxide

YMW 382708 1-1/2-12.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V Steam Oxide

Part Number: YMW382708

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: 1173411
Vendor: Sussex Tool and Supply
$568.60
Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.
Products specifications
Attribute name Attribute value
Tap Drill Range 1.4134 35.90MM - 1.4350 36.45MM
Dimension Standard ANSI/ANSI
Shank Or Pilot Diameter 1.1024 28.00MM
Thread Limit H5/GH5
Cutter Type Taping
Tap Square 0.8660
Length Type STANDARD
Performance Rating High Performance
Tap Style Cut Spiral Point
Overall Length 6.3750 161.93MM
Machine Side (Toolpost) TAP0.866x1.102
Cutting Edge Definition which increase wear resistance and hot hardness., Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 4
Shipping State CALIFORNIA
Cutting Edge Material HSSE-V
Tool Material Steel
Coating Steam Oxide
Coolant Thru Non Coolant
Tap Type Plug
Flute Direction Right
Thread Type NF/UNF/UNEF
Made In USA No
Thread Size 1-1/2"
Thread Pitch 12.00TPI
Tap Chamfer 3.0P-5.0P
