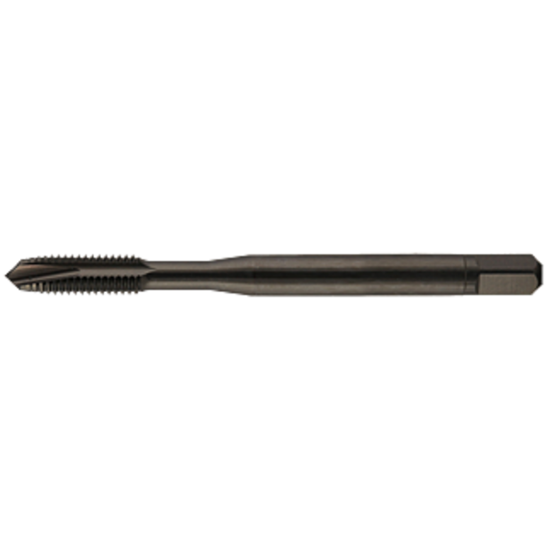

YMW 382673 1/4-20.00TPI Over Sized Plug Plug 3.0P-5.0P HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW382673
Delivery date: 3-5 days
$17.43
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Coating Steam Oxide
Material # Material#15, Material#21, Material#23, Material#3, Material#20, Material#8, Material#16
Sold by Pieces 1
Application Over Sized Tapping, Plug Tapping, Tapping, Through Hole Tapping
Shipping State California
Additional Key Information 1 Tapping
Performance Rating High Performance
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side TAP0.191x0.255
Flutes/Inserts 3
Thread Size 1/4"
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Thread Type NC/UNC
Flute Direction R - Right
Length Type Standard
Dimension Standard ANSI/ANSI
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Thread Limit GH7 +0.0035
Shank/Pilot Dia 0.2550 6.48MM
Thread Pitch 20.00TPI
Tap Square 0.1910
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Tap Style Over Sized Plug
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Medical Yes
Aerospace Yes
Job Shop Yes
Mold Yes
