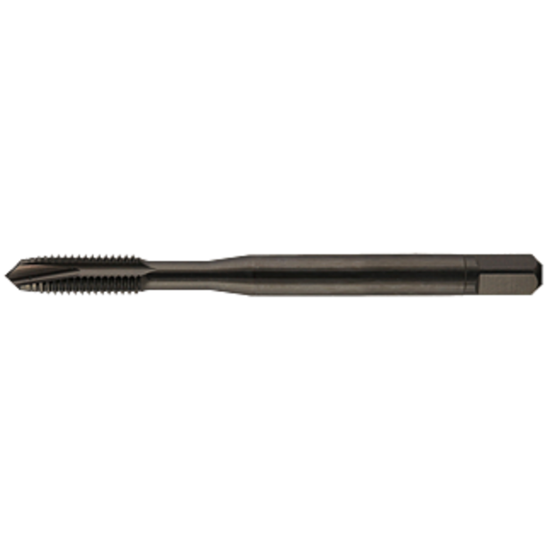

YMW 382661TIN No.10-32.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW382661TIN
Delivery date: 3-5 days
$16.17
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#3, Material#21, Material#23, Material#20, Material#15, Material#8, Material#16
Additional Key Information 1 Tapping
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Shipping State California
Sold by Pieces 1
Package Size 1
Coating TiN
Performance Rating High Performance
Uncategorized
Made In USA No
Dimensional Specifications
Flutes/Inserts 3
Flute Direction R - Right
Length Type Standard
Tap Square 0.1520
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Thread Type NC/UNC
Shank/Pilot Dia 0.1940 4.93MM
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Drill Range 0.1740 4.42MM - 0.1780 4.52MM
Thread Size No.10
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side TAP0.152x0.194
Thread Limit H6/GH6
Tool Material Steel
Overall Len 2.3740 60.30MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Medical Yes
Aerospace Yes
Job Shop Yes
Mold Yes
