  • YMW 382637 No.8-32.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V Uncoated

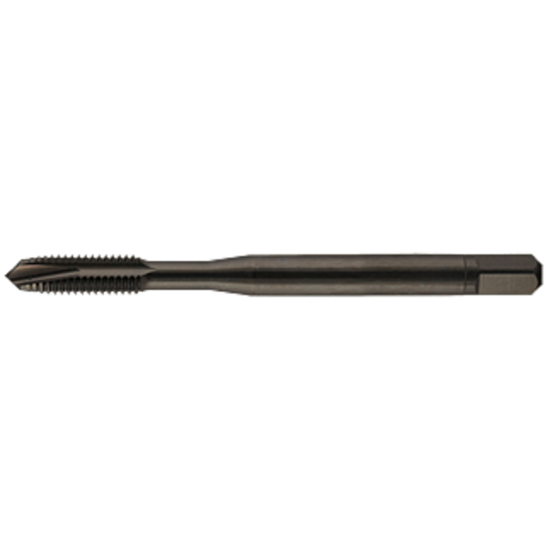

Picture of YMW 382637 No.8-32.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V Uncoated

YMW 382637 No.8-32.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW382637
Delivery date: 3-5 days
$16.17
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#15, Material#21, Material#23, Material#20, Material#8, Material#16, Material#3
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Sold by Pieces 1
Package Size 1
Shipping State California
Additional Key Information 1 Tapping
Performance Rating High Performance
Uncategorized
Made In USA No
Dimensional Specifications
Thread Pitch 32.00TPI
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Machine Side TAP0.131x0.168
Thread Type NC/UNC
Flute Direction R - Right
Shank/Pilot Dia 0.1680 4.27MM
Drill Range 0.1480 3.76MM - 0.1520 3.86MM
Tap Square 0.1310
Length Type Standard
Thread Size No.8
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Tool Material Steel
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Overall Len 2.1250 53.98MM
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
