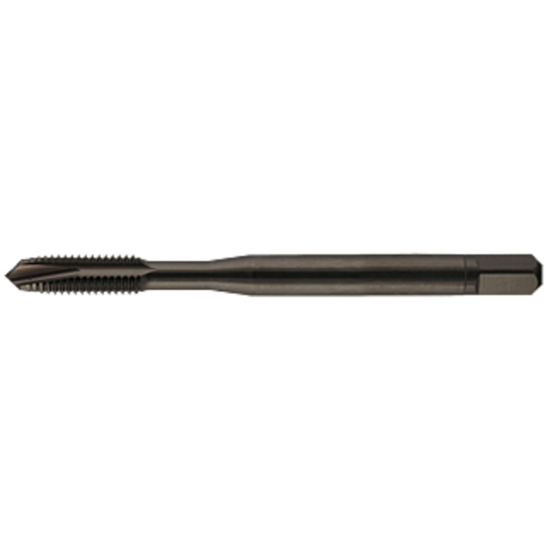

YMW 382634B No.4-40.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW382634B
Delivery date: 3-5 days
$17.34
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#15, Material#20, Material#8, Material#16, Material#3, Material#21, Material#23
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Package Size 1
Shipping State California
Additional Key Information 1 Tapping
Coating Steam Oxide
Performance Rating High Performance
Sold by Pieces 1
Uncategorized
Made In USA No
Dimensional Specifications
Thread Pitch 40.00TPI
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Thread Size No.4
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side TAP0.110x0.140
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tool Material Steel
Drill Range 0.0992 2.52MM - 0.1024 2.60MM
Tap Square 0.1100
Length Type Standard
Overall Len 1.8750 47.63MM
Thread Type NC/UNC
Flute Direction R - Right
Flutes/Inserts 2
Shank/Pilot Dia 0.1410 3.58MM
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
