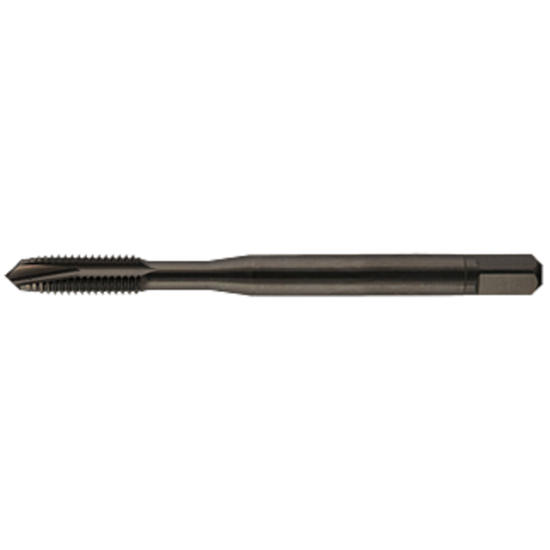

YMW 382631 1/4-28.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW382631
Delivery date: 3-5 days
$17.43
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#15, Material#20, Material#16, Material#8, Material#21, Material#23, Material#3
Application Plug Tapping, Tapping, Through Hole Tapping, Cut Tapping
Performance Rating High Performance
Sold by Pieces 1
Shipping State California
Package Size 1
Additional Key Information 1 Tapping
Coating Steam Oxide
Uncategorized
Made In USA No
Dimensional Specifications
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Thread Limit H4/GH4
Shank/Pilot Dia 0.2550 6.48MM
Tap Style Cut Spiral Point
Tool Material Steel
Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Thread Size 1/4"
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Flute Direction R - Right
Length Type Standard
Thread Pitch 28.00TPI
Machine Side TAP0.191x0.255
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
