  • YMW 382592B 3/4-16.00TPI Over Sized Plug Plug 3.0P-5.0P HSSE-V Uncoated

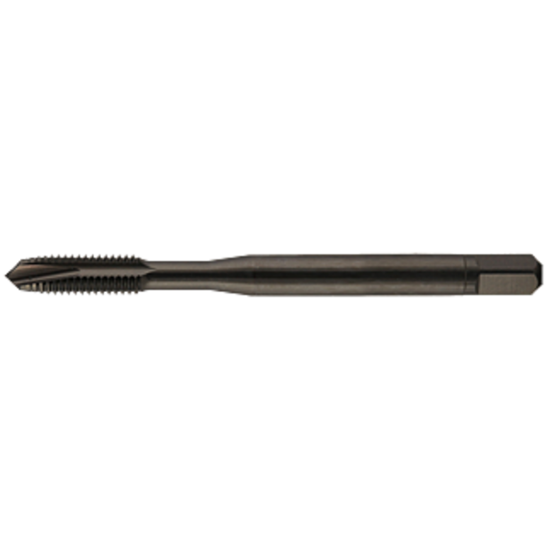

Picture of YMW 382592B 3/4-16.00TPI Over Sized Plug Plug 3.0P-5.0P HSSE-V Uncoated

YMW 382592B 3/4-16.00TPI Over Sized Plug Plug 3.0P-5.0P HSSE-V Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW382592B
Delivery date: 3-5 days
$107.26
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#8, Material#21, Material#15, Material#16, Material#20, Material#3, Material#23
Shipping State California
Sold by Pieces 1
Application Over Sized Tapping, Through Hole Tapping, Plug Tapping, Tapping
Additional Key Information 1 Tapping
Performance Rating High Performance
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Overall Len 4.2520 108.00MM
Tap Square 0.4420
Tap Style Over Sized Plug
Flute Direction R - Right
Length Type Standard
Thread Limit GH7 +0.0035
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Tool Material Steel
Drill Range 0.6850 17.40MM - 0.7012 17.81MM
Thread Size 3/4"
Thread Pitch 16.00TPI
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.5900 14.99MM
Machine Side TAP0.442x0.590
Flutes/Inserts 3
Thread Type NC/UNC
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Medical Yes
Aerospace Yes
Job Shop Yes
Mold Yes
