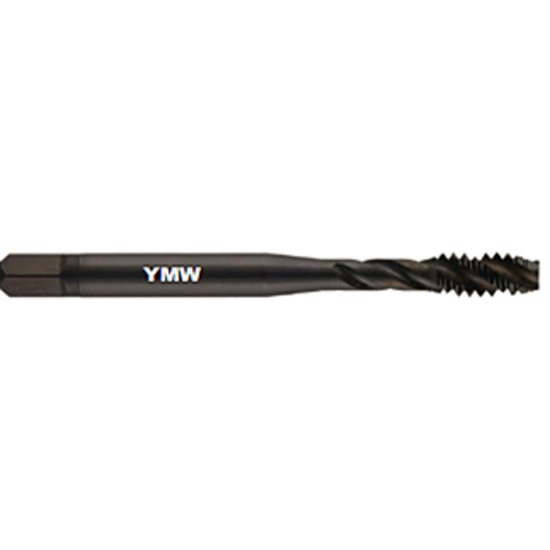

Picture of YMW 374027O M12-1.75mm Cut Spiral Point Plug 3.0P-5.0P HSSE-V Uncoated

YMW 374027O M12-1.75mm Cut Spiral Point Plug 3.0P-5.0P HSSE-V Uncoated

Part Number: YMW374027O

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: 1173180
Vendor: Sussex Tool and Supply
$550.29
Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.
Products specifications
Attribute name Attribute value
Tap Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Dimension Standard ANSI/ANSI
Shank Or Pilot Diameter 0.3670 9.32MM
Thread Limit D6
Cutter Type Taping
Tap Square 0.2720
Length Type STANDARD
Performance Rating High Performance
Tap Style Cut Spiral Point
Overall Length 3.3740 85.70MM
Machine Side (Toolpost) TAP0.275x0.367
Cutting Edge Definition which increase wear resistance and hot hardness., Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 3
Shipping State CALIFORNIA
Cutting Edge Material HSSE-V
Tool Material Steel
Coolant Thru Non Coolant
Tap Type Plug
Flute Direction Right
Thread Type Metric
Made In USA No
Thread Size M12
Thread Pitch 1.75MM
Tap Chamfer 3.0P-5.0P
