  • YMW 374020O M6-1.00MM Cut Spiral Point Plug 3.0P-5.0P HSSE-V Uncoated

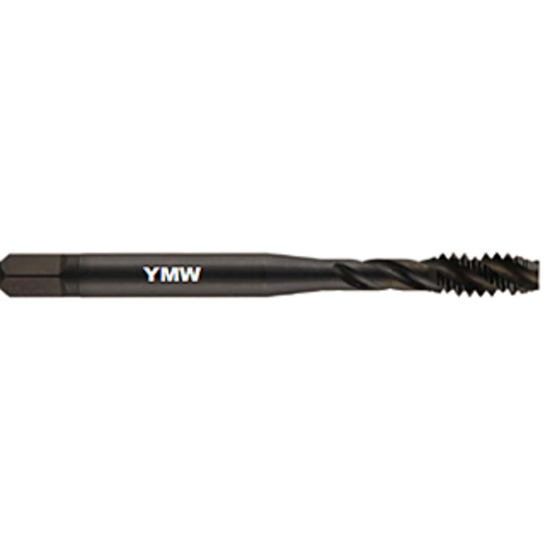

Picture of YMW 374020O M6-1.00MM Cut Spiral Point Plug 3.0P-5.0P HSSE-V Uncoated

YMW 374020O M6-1.00MM Cut Spiral Point Plug 3.0P-5.0P HSSE-V Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW374020O
Delivery date: 3-5 days
$15.38
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#20, Material#3, Material#15, Material#21, Material#23, Material#16, Material#8
Sold by Pieces 1
Additional Key Information 1 Tapping
Application Cut Tapping, Tapping, Plug Tapping, Through Hole Tapping
Performance Rating High Performance
Package Size 1
Shipping State California
Uncategorized
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.2550 6.48MM
Tap Chamfer 3.0P-5.0P
Dimension Standard ANSI/ANSI
Machine Side TAP0.191x0.255
Tap Square 0.1890
Thread Type Metric
Tap Type Plug
Thread Size M6
Flutes/Inserts 3
Flute Direction R - Right
Length Type Standard
Tool Material Steel
Thread Pitch 1.00MM
Thread Limit D5
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Style Cut Spiral Point
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Aerospace Yes
Mold Yes
Job Shop Yes
Medical Yes
