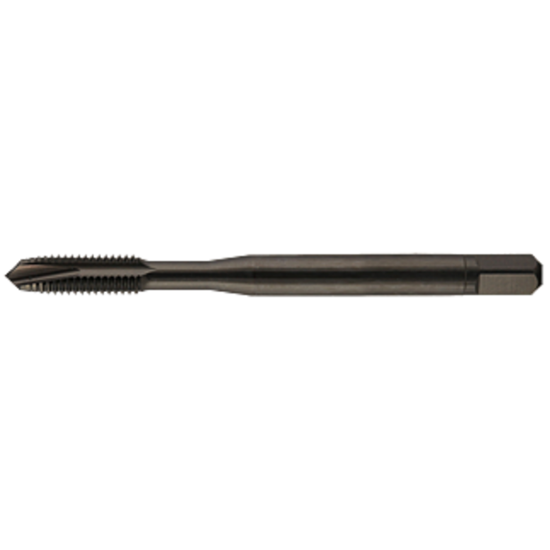

YMW 372915BR M3-0.50MM Cut Spiral Point Plug 3.0P-5.0P HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW372915BR
Delivery date: 3-5 days
$16.92
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#3, Material#16, Material#21, Material#23, Material#20, Material#8, Material#15
Additional Key Information 1 Tapping
Application Cut Tapping, Tapping, Through Hole Tapping, Plug Tapping
Coating Steam Oxide
Performance Rating High Performance
Shipping State California
Sold by Pieces 1
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Flutes/Inserts 3
Flute Direction R - Right
Overall Len 2.9370 74.60MM
Length Type Standard
Thread Pitch 0.50MM
Shank/Pilot Dia 0.1410 3.58MM
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Thread Limit D3
Tool Material Steel
Tap Square 0.1080
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, Stainless Steel
Machine Side TAP0.110x0.141
Thread Size M3
Thread Type Metric
Dimension Standard ANSI/ANSI
Drill Range 0.1083 2.75MM - 0.1106 2.81MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
