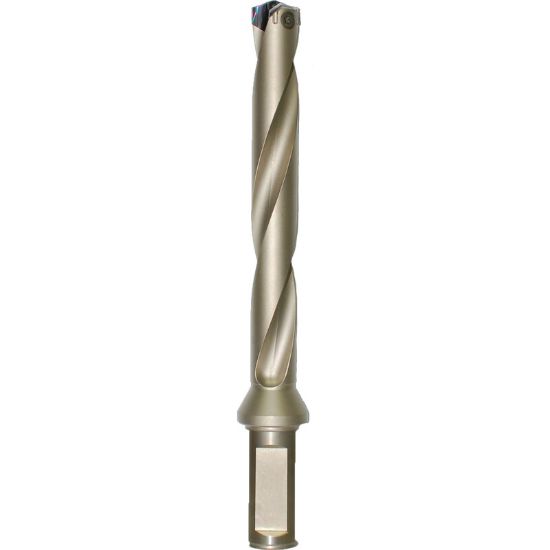

YG-1 ZI0703 1.1417 MIN DIA 1.1610 MAX DIA I-DREAM Drill HOLDER, FLANGED Shank (7XD)

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1ZI0703
Delivery date: 3-5 days
$652.77
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling
Additional Key Information 1 Indexable Drill
Shipping State Illinois
Additional Key Information 3 Drill
Package Size 1
Sold by Pieces 1
Additional Key Information 2 Single Insert
Uncategorized
Made In USA No
Dimensional Specifications
Cutter Dia 1.1417 29.00MM
Flutes/Inserts 2
Included Angle 140°
Cut Dia Min 1.1417 29.00MM
Machine Side BBAR1.2500,WELDON1.2500
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Dia Deep 7.0XD
Machine Side Connection Type Boring Bar,Weldon
Flute Length 8.6560 219.86MM
Cut Dia Max 1.1610 29.49MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 11.9375 303.21MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Energy Yes
Medical Yes
