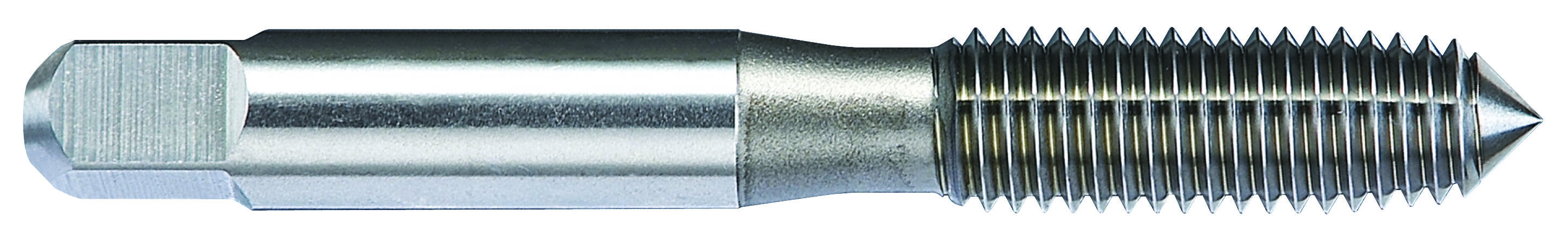

Picture of YG-1 Z8287 M5-0.80mm Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

YG-1 Z8287 M5-0.80mm Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

Part Number: YG-Z8287
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$15.39
SKU: 1167845

Description

YG-1 Z8287 M5x0.80MM Roll Form Plug 4.0P-5.0P HSSE-V3 TiN D7 Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Tap Style Roll Form
Tap Type Plug
Tap Chamfer 4.0P-5.0P
Dimensions & Sizing
Overall Length 2.3750 60.33MM
Shank/Pilot Dia 0.1940 4.93MM
Thread Pitch 0.80MM
Thread Size M5
Tap Drill Range 0.1807 4.59MM - 0.1850 4.70MM
Tap Square 0.1520
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <30HRC Steel, Copper, Titanium
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit D7
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V3
Coating TIN
Standards & Identification
Dimension Standard ANSI/ANSI
