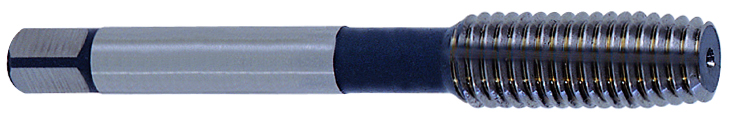

Picture of YG-1 Z770B 3/4-10.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

YG-1 Z770B 3/4-10.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

Part Number: YG-Z770B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1167840
Vendor: Sussex Tool and Supply
$95.61
YG-1 Z770B 3/4"x10.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN H12 NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V3
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <30HRC Steel, Copper, Titanium
Coating TIN
Overall Length 4.2500 107.95MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5900 14.99MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 10.00TPI
Thread Type NC/UNC
Thread Size 3/4"
Thread Limit H12
Tap Style Roll Form
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.6988 17.75MM - 0.7126 18.10MM
Tap Square 0.4420
Tap Chamfer 1.5P-2.0P
