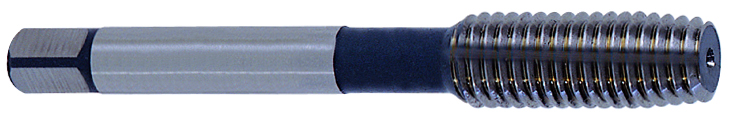

Picture of YG-1 Z7660 5/8-18.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

YG-1 Z7660 5/8-18.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

Part Number: YG-Z7660

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1167838
Vendor: Sussex Tool and Supply
$76.84
YG-1 Z7660 5/8"x18.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN H10 NF/UNF/UNEF Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V3
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <30HRC Steel, Copper, Titanium
Coating TIN
Overall Length 3.8120 96.82MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4800 12.19MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 18.00TPI
Thread Type NF/UNF/UNEF
Thread Size 5/8"
Thread Limit H10
Tap Style Roll Form
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.5965 15.15MM - 0.6039 15.34MM
Tap Square 0.3600
Tap Chamfer 1.5P-2.0P
