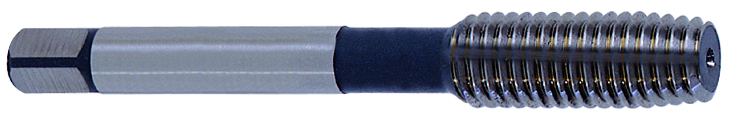

Picture of YG-1 Z6487 3/8-16.00TPI Over Sized Roll Form Bottoming 1.5P-2.0P HSSE-V3 Uncoated

YG-1 Z6487 3/8-16.00TPI Over Sized Roll Form Bottoming 1.5P-2.0P HSSE-V3 Uncoated

Part Number: YG-Z6487
Looking for alternatives…
Find a drill for this tap 3/8" × 16.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1167773
Vendor: Sussex Tool and Supply
$21.83

Description

YG-1 Z6487 3/8"x16.00TPI Over Sized Roll Form Bottoming 1.5P-2.0P HSSE-V3 Uncoated GH7 +0.0035 NC/UNC Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Tap Style Over Sized Roll Form
Tap Type Bottoming
Tap Chamfer 1.5P-2.0P
Dimensions & Sizing
Overall Length 2.9370 74.60MM
Shank/Pilot Dia 0.3810 9.68MM
Thread Pitch 16.00TPI
Thread Size 3/8"
Tap Drill Range 0.3429 8.71MM - 0.3516 8.93MM
Tap Square 0.2860
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <30HRC Steel, Copper, Titanium
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit GH7 +0.0035
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V3
Standards & Identification
Dimension Standard ANSI/ANSI
