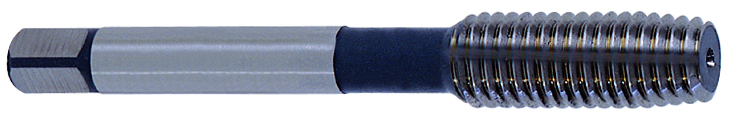

Picture of YG-1 Z5628 9/16-18.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

YG-1 Z5628 9/16-18.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

Part Number: YG-Z5628

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1167735
Vendor: Sussex Tool and Supply
$70.43
YG-1 Z5628 9/16"x18.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 TiN H8/GH8 NF/UNF/UNEF Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V3
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <30HRC Steel, Copper, Titanium
Coating TIN
Overall Length 3.5900 91.19MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4290 10.90MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 18.00TPI
Thread Type NF/UNF/UNEF
Thread Size 9/16"
Thread Limit H8/GH8
Tap Style Roll Form
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.5339 13.56MM - 0.5413 13.75MM
Tap Square 0.3220
Tap Chamfer 4.0P-5.0P
