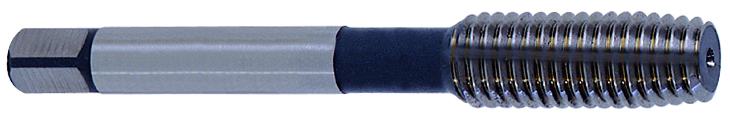

Picture of YG-1 Z5568 1/2-13.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

YG-1 Z5568 1/2-13.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

Part Number: YG-Z5568
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
1/2" × 13.00TPI Roll Form
% of thread 65%
Target drill —
Drill products available across the % thread range
55% 72.5%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±3% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1167729
Vendor: Sussex Tool and Supply
$47.49

Description

YG-1 Z5568 1/2"x13.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 TiN H8/GH8 NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Tap Style Roll Form
Tap Type Plug
Tap Chamfer 4.0P-5.0P
Dimensions & Sizing
Overall Length 3.3750 85.73MM
Shank/Pilot Dia 0.3670 9.32MM
Thread Pitch 13.00TPI
Thread Size 1/2"
Tap Drill Range 0.4606 11.70MM - 0.4720 11.99MM
Tap Square 0.2750
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <30HRC Steel, Copper, Titanium
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H8/GH8
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V3
Coating TIN
Standards & Identification
Dimension Standard ANSI/ANSI
