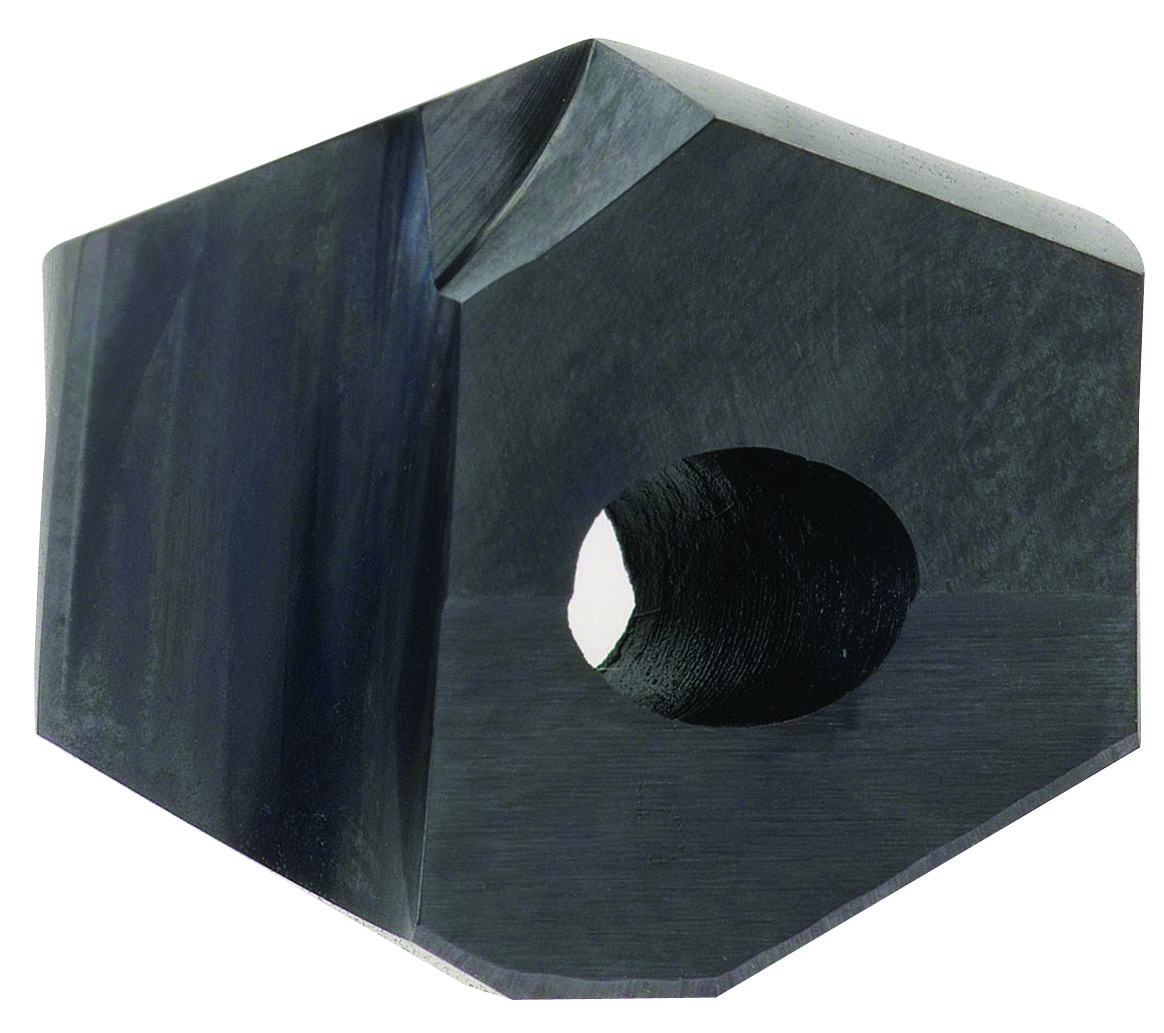

Picture of YG-1 YI3B16 39/64 I-DreamDrill Insert Inox TICN-Coated #B

YG-1 YI3B16 39/64 I-DreamDrill Insert Inox TICN-Coated #B

Part Number: YG1YI3B16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1153556
Vendor: Sussex Tool and Supply
$63.25
YG-1 YI3B16 Indexable Drill 39/64 I-DREAMDRILL Insert INOX TICN-COATED #B 140° Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Tool Material Carbide
Cutting Edge Mat Carbide
Cut Rating Stainless Steel, <42HRC Steel
Coating TICN
Coolant Thru Thru Coolant
Flutes/Inserts 2
Tool Dia 0.6094 15.48MM - 39/64
Type Of Tool Drill
Included Angle 140°
Cut Dia Min 0.6094 15.48MM - 39/64
Dia Deep 3.0x Dia, 5.0x Dia, 7.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
