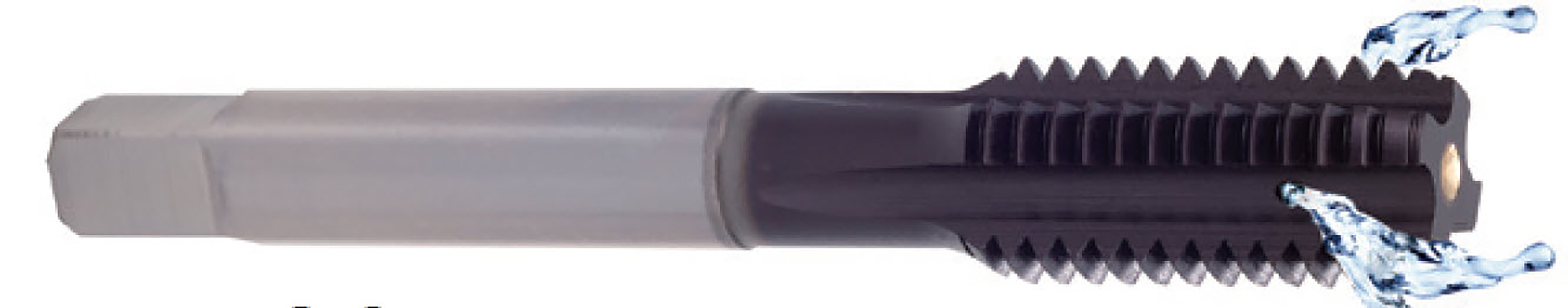

Picture of YG-1 TR426R M10-1.50mm Cut Straight Flute Mod Bottom 2.0P-3.0P Super HSS TiAlN

YG-1 TR426R M10-1.50mm Cut Straight Flute Mod Bottom 2.0P-3.0P Super HSS TiAlN

Part Number: YG-TR426R
Looking for alternatives…
Find a drill for this tap M10 × 1.50MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1167282
Vendor: Sussex Tool and Supply
$56.77

Description

YG-1 TR426R M10x1.50MM Cut Straight Flute Mod Bottom 2.0P-3.0P Super HSS TiAlN D6 Metric Steel Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Tap Style Cut Straight Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 2.9370 74.60MM
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 4
Thread Pitch 1.50MM
Thread Size M10
Tap Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Square 0.2860
Performance & Capacity
Cut Rating Gray Iron, Ductile Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit D6
Materials & Finish
Tool Material Steel
Cutting Edge Mat Super HSS
Coating TiAlN
Standards & Identification
Dimension Standard ANSI/ANSI
